Hybrid Belief–Reinforcement Learning for Sample Efficient Coordinated Spatial Exploration Under Uncertainty

Under review

Danish Rizvi     David Boyle

Systems and Algorithms Lab, Imperial College London

Paper arXiv (coming soon) Code (coming soon)
HBRL Framework

Overview of the proposed HBRL framework. Phase 1 employs LGCP-based belief inference and PathMI planning to guide information-driven exploration. Phase 2 performs policy optimization using Soft Actor-Critic (SAC), warm-started via dual-channel knowledge transfer: (i) belief state initialization and (ii) replay buffer seeding with LGCP-generated trajectories.

Learned belief intensity at convergence (Episode 200).

Abstract

Coordinating multiple autonomous agents to explore and serve spatially heterogeneous demand requires jointly learning unknown spatial patterns and planning trajectories that maximize task performance. Pure model-based approaches provide structured uncertainty estimates but lack adaptive policy learning, while deep reinforcement learning often suffers from poor sample efficiency when spatial priors are absent. This paper presents a hybrid belief–reinforcement learning (HBRL) framework to address this gap. In the first phase, agents construct spatial beliefs using a Log-Gaussian Cox Process (LGCP) and execute information-driven trajectories guided by a Pathwise Mutual Information (PathMI) planner with multi-step lookahead. In the second phase, trajectory control is transferred to a Soft Actor-Critic (SAC) agent, warm-started through dual-channel knowledge transfer: belief state initialization supplies spatial uncertainty, and replay buffer seeding provides demonstration trajectories generated during LGCP exploration. A variance-normalized overlap penalty enables coordinated coverage through shared belief state, permitting cooperative sensing in high-uncertainty regions while discouraging redundant coverage in well-explored areas. The framework is evaluated on a multi-UAV wireless service provisioning task. Results show 10.8% higher cumulative reward and 38% faster convergence over baselines, with ablation studies confirming that dual-channel transfer outperforms either channel alone.

Contributions

  • A hybrid framework combining Log-Gaussian Cox Process (LGCP) spatial modeling with Soft Actor-Critic (SAC) reinforcement learning for coordinated spatial exploration under unknown demand.
  • A dual-channel warm-start mechanism for sample-efficient learning: (i) belief initialization, which provides the RL agent with an informed prior for early policy updates, and (ii) behavioral transfer, which seeds the replay buffer with LGCP-generated exploration trajectories.
  • Uncertainty-driven Pathwise Mutual Information (PathMI) planning for non-myopic trajectory optimization during the exploration phase, extending standard informative path planning (IPP) with staleness-weighted revisitation incentives.
  • A variance-normalized overlap penalty that adapts coordination strength to local belief uncertainty, permitting cooperative sensing in high-uncertainty regions while penalizing redundant coverage.
  • Experimental evaluation shows up to 10.8% higher reward and 38% faster convergence versus baselines.

Instantiation

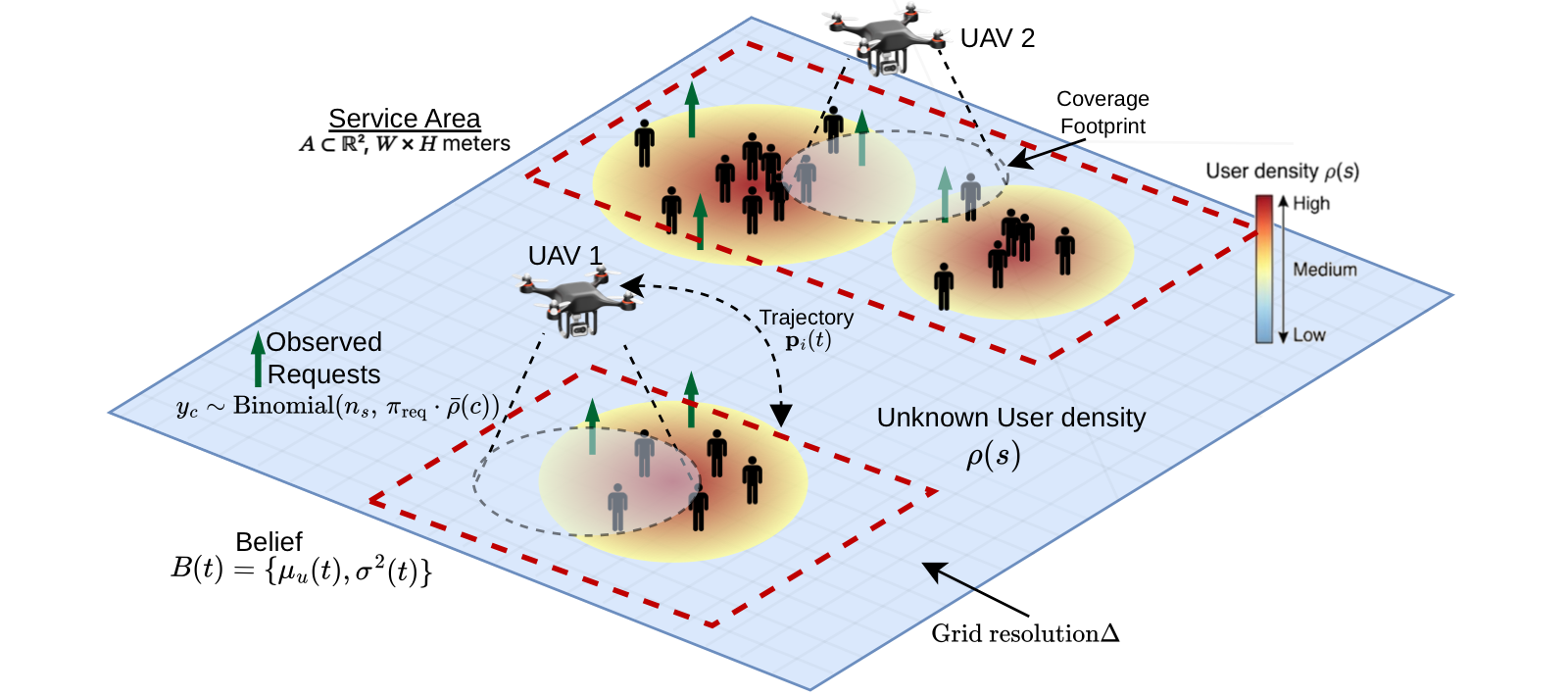

System Model

Figure 1: Multiple mobile agents spatial exploration over a discretized operational area with unknown demand, modeled via a spatial belief process. The illustrated scenario depicts UAVs as the instantiated agents, with further details provided in Section 4.

Exploration Behavior

Converged Policy (Episode 200)

HBRL (Ours)
Pure RL

Mid-Training (Episode 100)

HBRL (Ours)
Pure RL

Experimental Results

Learning Performance

Reward Comparison

Figure 4: Reward comparison between Pure LGCP, Pure RL, Behavior Cloning and HBRL frameworks.

Posterior Variance

Figure 5: Posterior Variance comparison between Pure LGCP, Pure RL and HBRL. Lower values indicate higher confidence in the inferred demand field.

Dual-Channel Transfer Ablation

Transfer Channel Ablation

Figure 6: Comparison of reward and episodes to reach Pure RL reward for all three transfer channel scenarios.

Scalability and Coordination

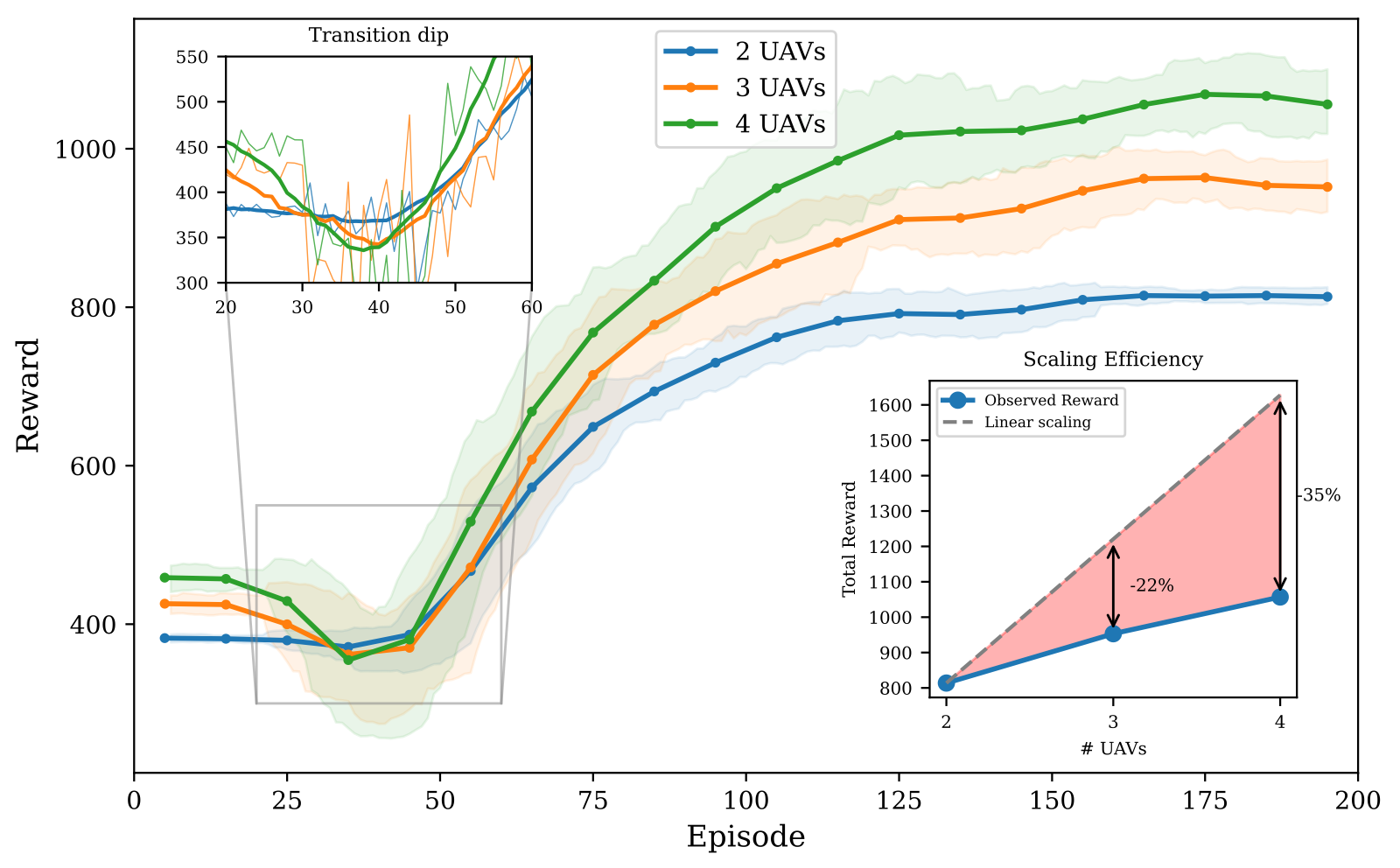

UAV Scaling

Figure 9: Learning performance comparison under varying numbers of UAVs. Increasing the number of agents improves overall reward but exhibits sub-linear scaling due to coordination overhead and redundant coverage

Overlap Penalty

Figure 10: Comparison of reward under various overlap penalty scenarios.

Ablation Studies

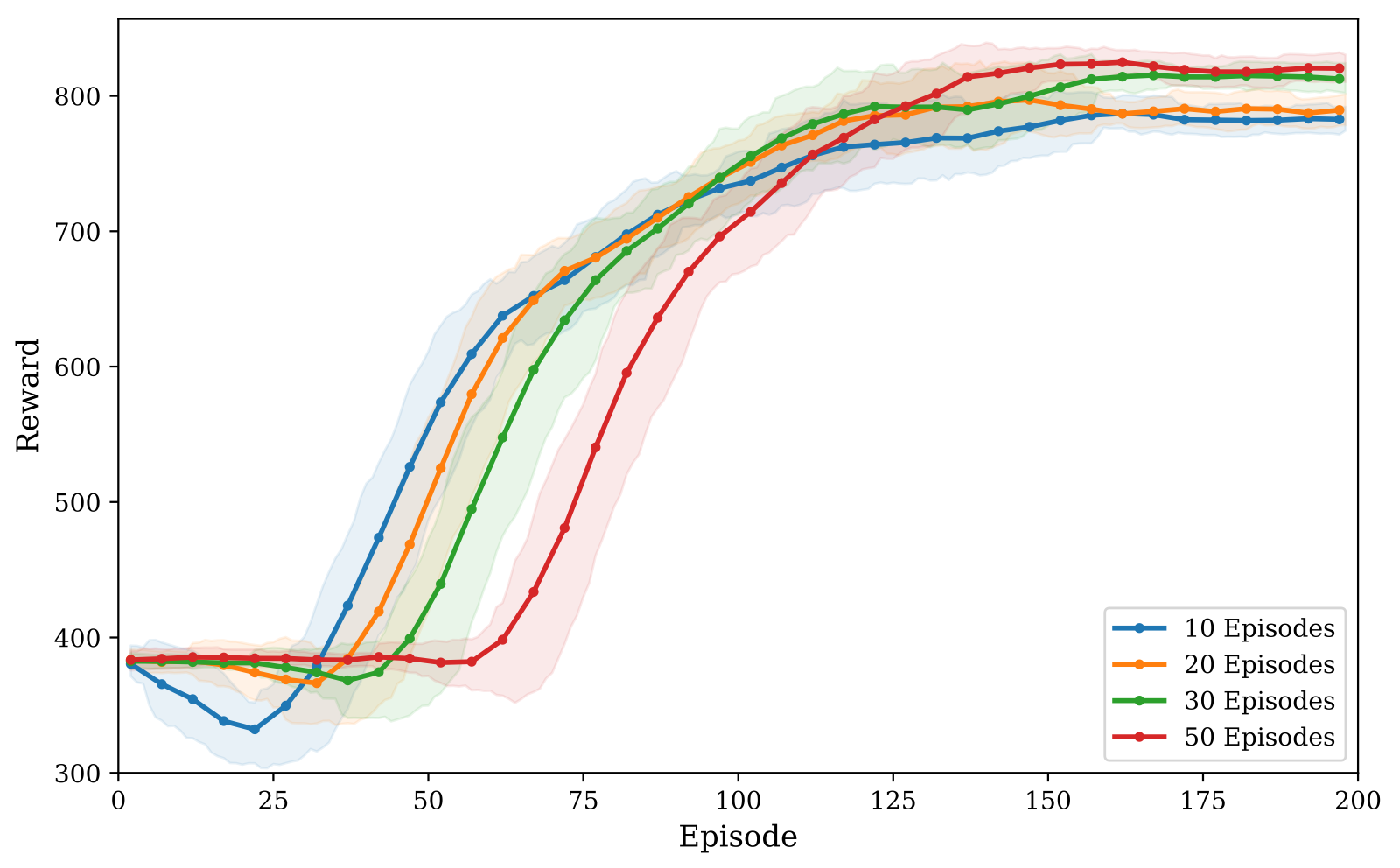

Warm-Start Duration

Figure 7: Effect of LGCP warm-start duration on SAC training. Different warm-start lengths determine the transition point from LGCP exploration (Phase-1) to SAC optimization(Phase-2).

PathMI Horizon

Figure 8: Effect of PathMI planning horizon on final reward.

Temporal Decay

Figure 11: Impact of temporal decay on HBRL performance: (a) reward convergence and (b) belief uncertainty evolution. The dashed line denotes the warm-start transition point.

Weight Sensitivity

Weight Sensitivity

Figure 12: Reward weight sensitivity analysis. (a) Effect of exploration weight $\omega_2$ on final reward with coordination weight fixed at $\omega_3 = 1.0$. The shaded region indicates the optimal range $\omega_2 \in [0.4, 0.6]$. (b) Effect of coordination weight $\omega_3$ on final reward with exploration weight fixed at $\omega_2 = 0.4$. (c) Reward heatmap over the $(\omega_2, \omega_3)$ configuration space with $\omega_1 = 5$. The star indicates the default configuration.

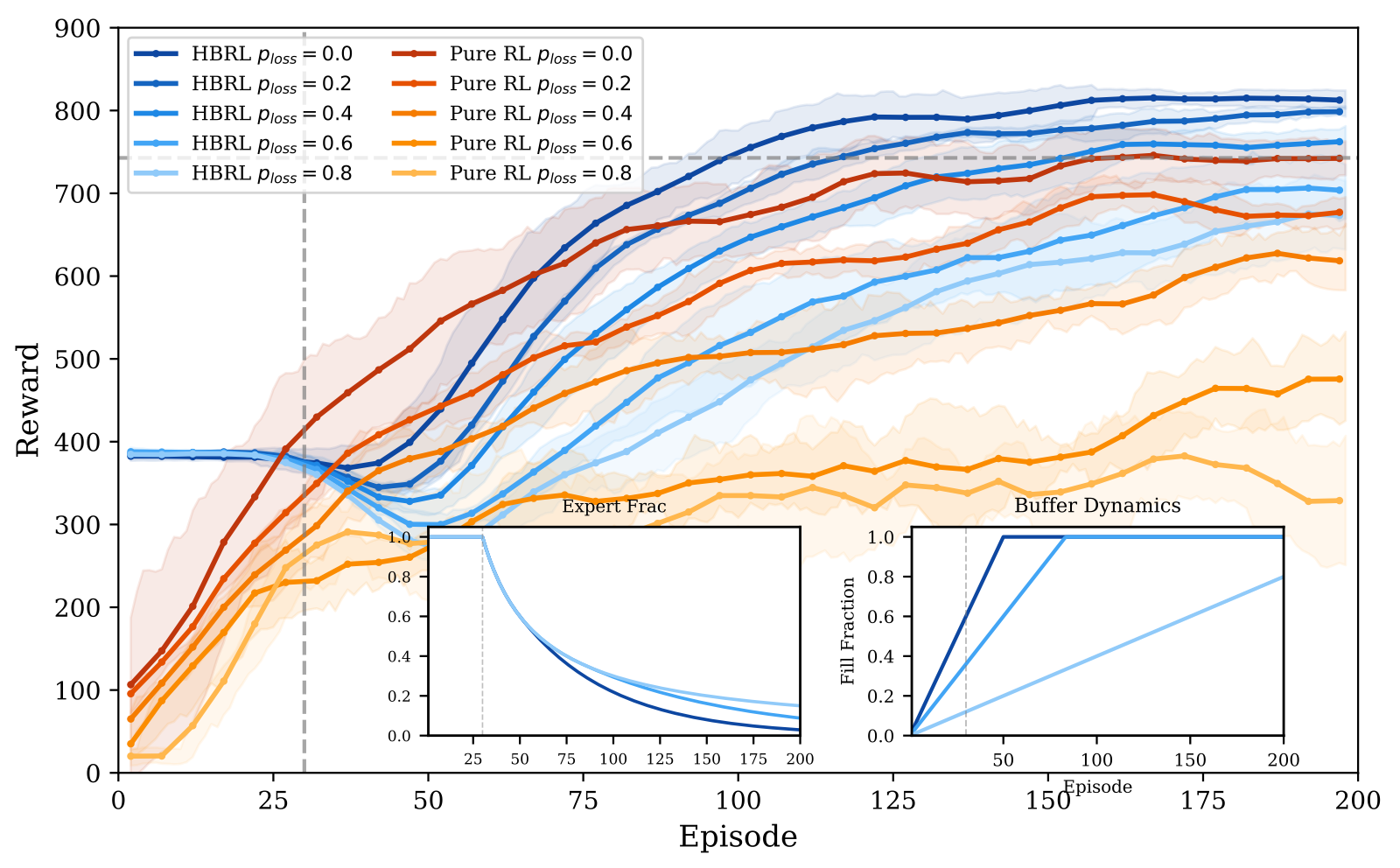

Robustness to Experience Loss

Experience Loss Curves

Figure 13: Training curves for different $p_{\text{loss}}$ values.

Experience Loss Bars

Figure 14: Final Reward and Convergence vs. $p_{\text{loss}}$.

Learned Belief Intensity

Belief Intensity

Figure 17: Learned belief intensity maps at episode 100 and convergence for HBRL and Pure RL, compared against the ground truth

BibTeX

@article{rizvi2025hbrl,
  title   = {Hybrid Belief--Reinforcement Learning for Sample Efficient
             Coordinated Spatial Exploration Under Uncertainty},
  author  = {Rizvi, Danish and Boyle, David},
  year    = {2025},
  note    = {TBC}
}

Acknowledgements

This work was supported in part by the Commonwealth Scholarship Commission, U.K.; and in part by the Communications Hub for Empowering Distributed ClouD Computing Applications and Research (CHEDDAR) funded by U.K. Engineering and Physical Sciences Research Council (EPSRC) under Grant EP/Y037421/1 and Grant EP/X040518/1.
